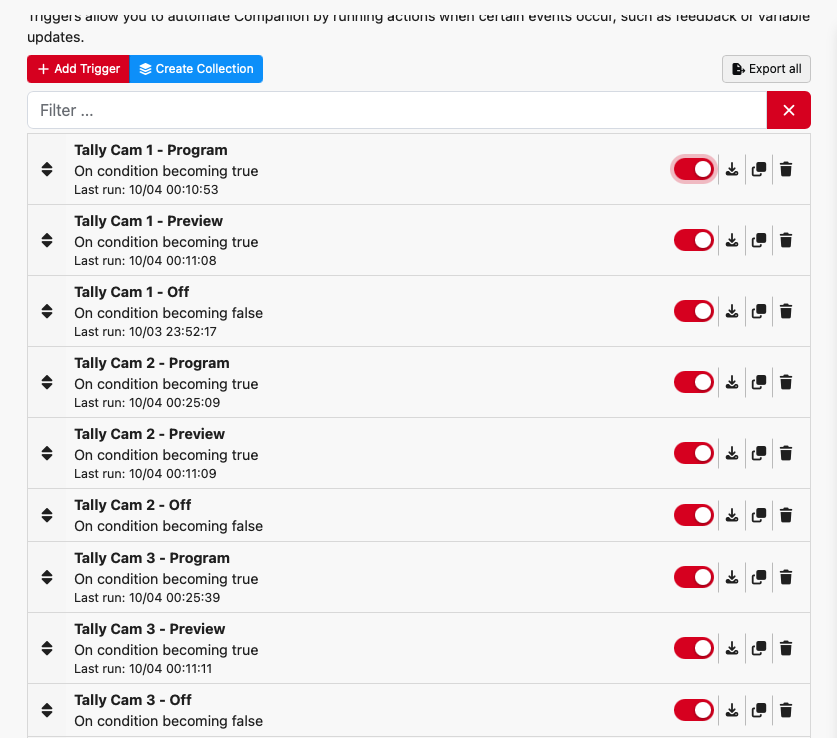

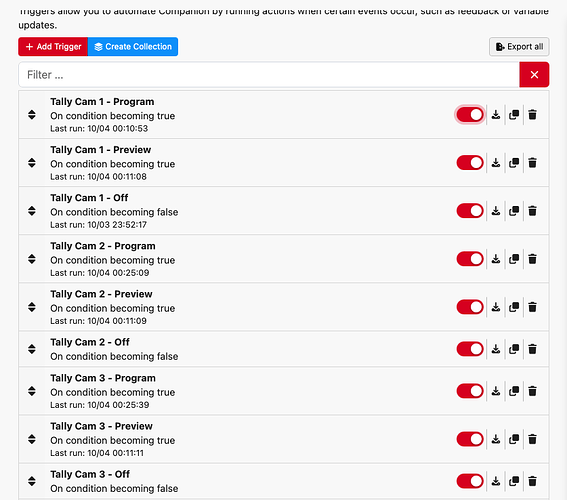

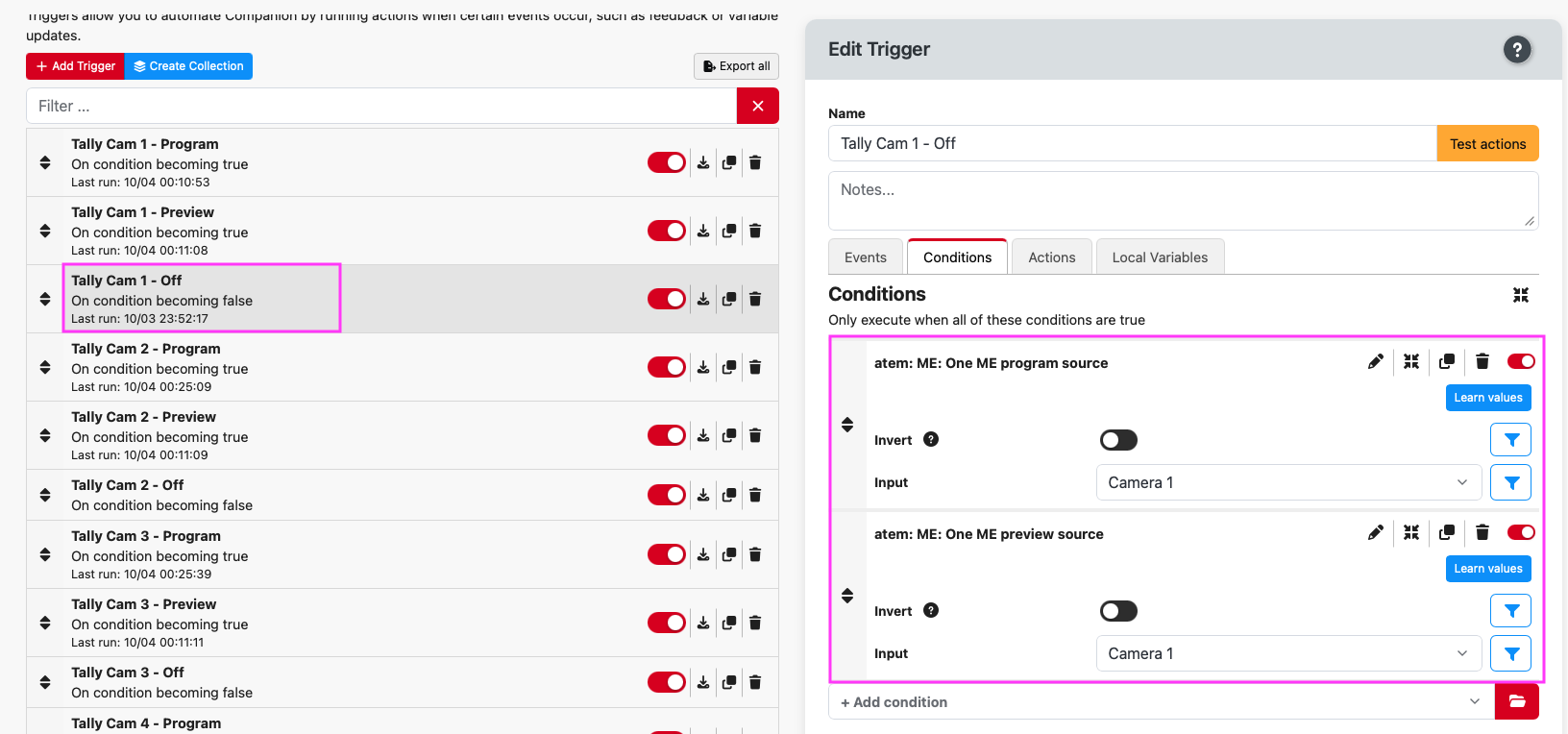

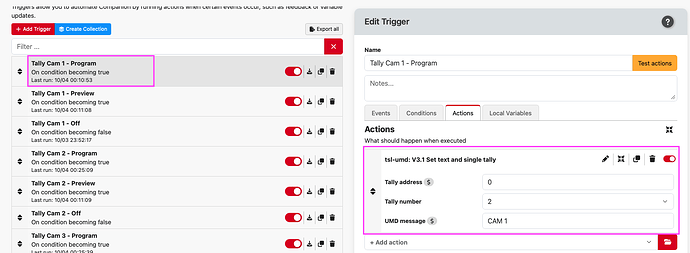

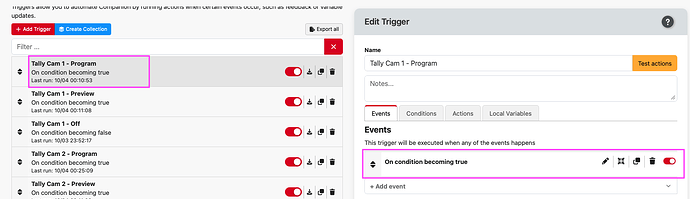

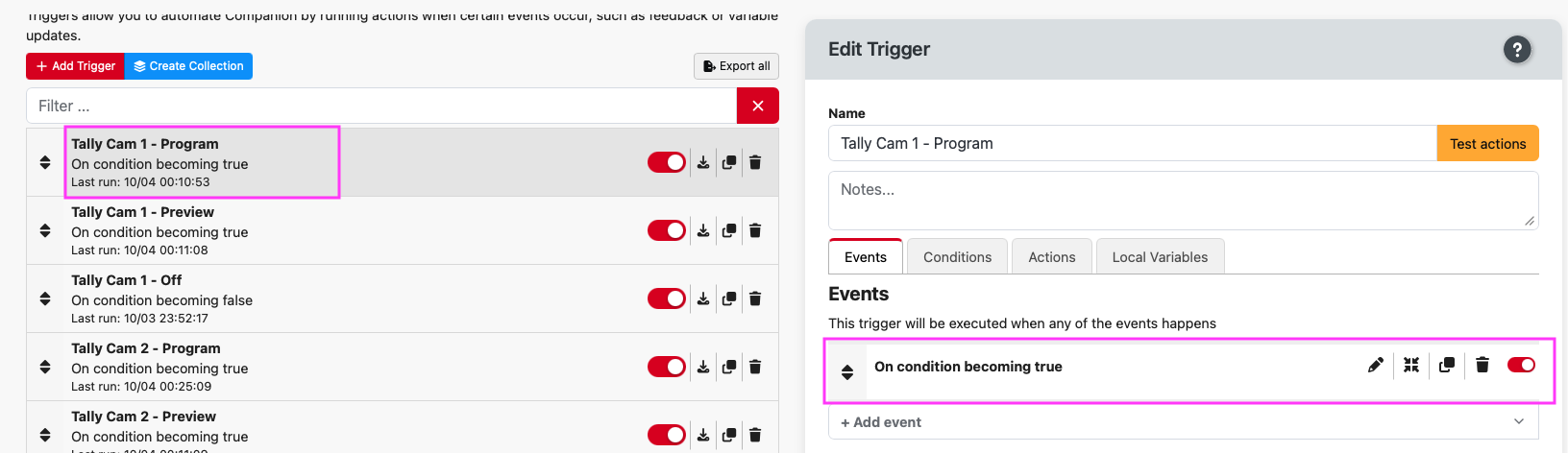

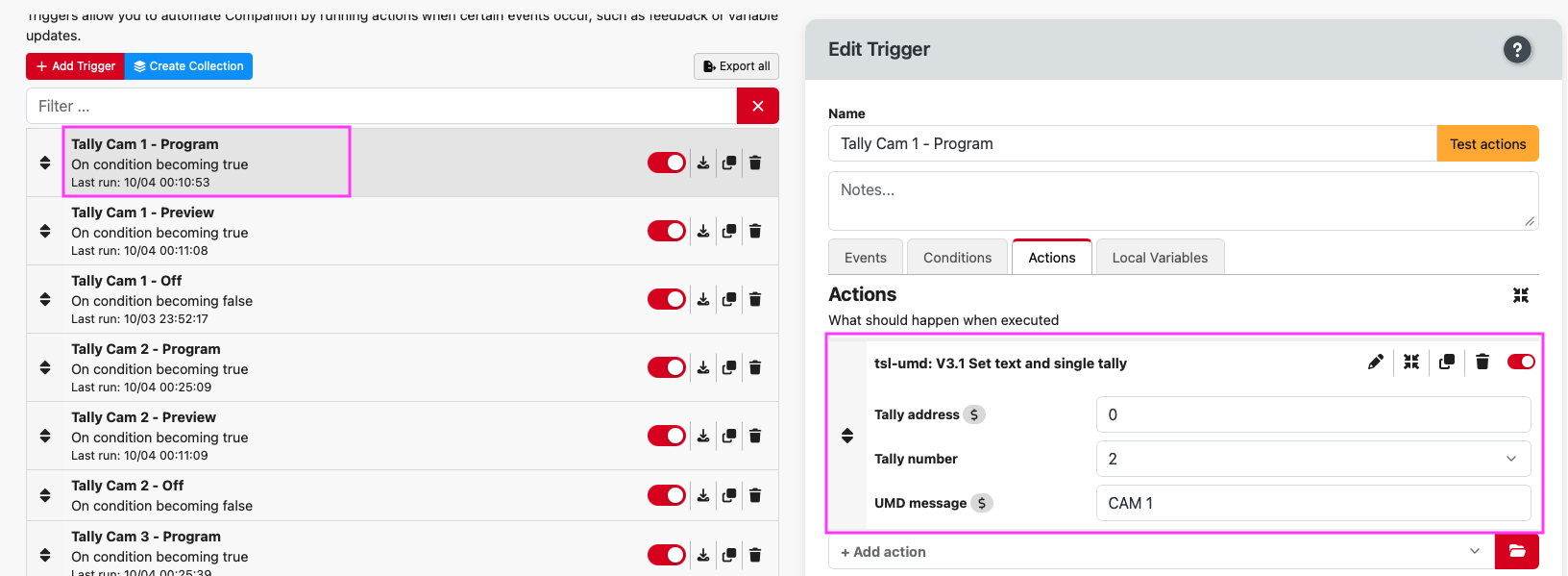

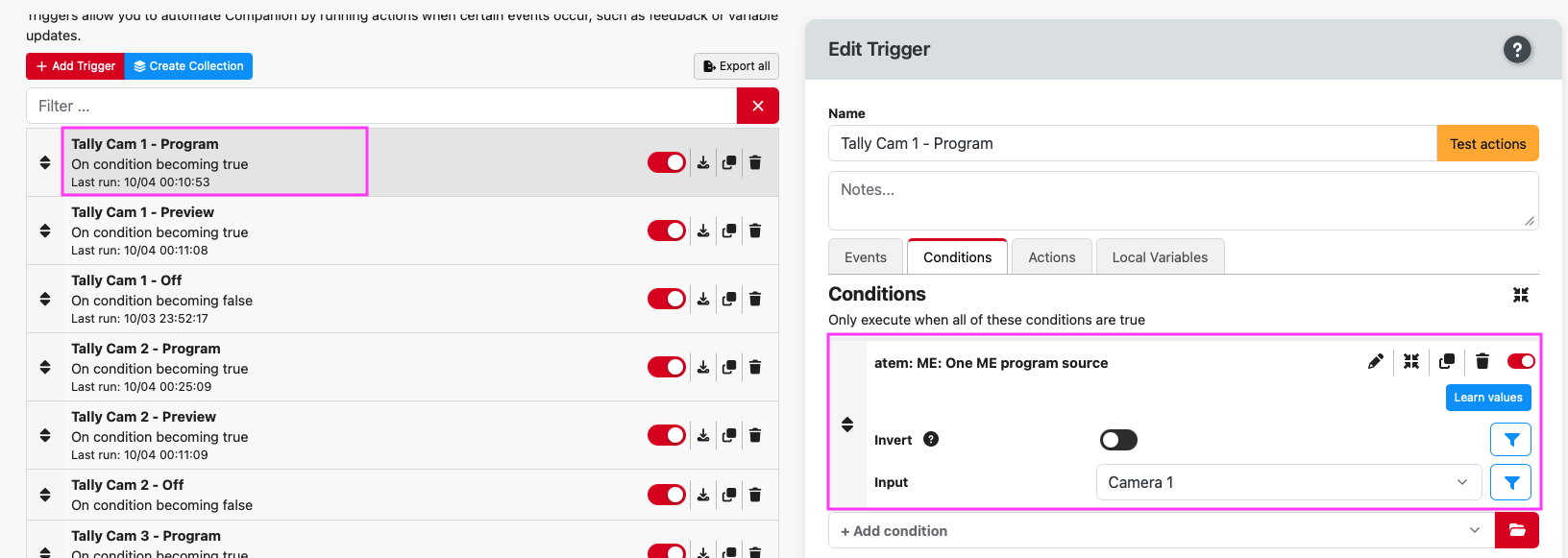

I am trying to set up my Decimator DMON-6s Multi-viewer to receive TSL messages from by ATEM. I am using Bitfocus Companion and a PUSR USR-TCP 232-410s, 485 To Ethernet adapter. For the most part it is working. When I select a camera the correct tally displays on the Decimator for both program and preview. I issue I am having is how to turn the tally off when not selected. I have included screenshots of the Triggers I built. Using Camera 1 for this test, If I put camera 3 on program and camera 5 on preview, then click on the “test action button in Companion the tally goes off which leads me to believe the trigger is functioning. I would appreciate and suggestion or guidance you can share.
Computer: Mac Studio M2 Max
Companion: 5.0.7
Decimator: v 1.50
Companion Modules:
TSL-Products: UMD protocol v2.3.0
BMD Atem v 4.3.1
tslumd-listener v3.0.2
